Luxmatic Parking Lot Lighting Control System – Smart Line

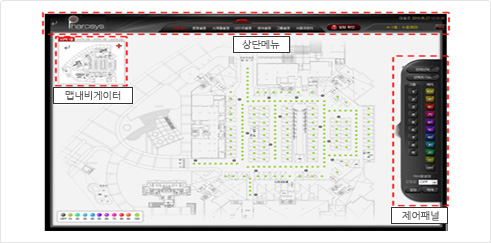

01_Software(Luxmatic Parking Lot)

Administrator can access the web and control the system anywhere with web server function.

Function	LED Lighting Control Software
Feature	Lighting Status Communication Status Automatic schedule control and change Sets individual unit/group Provides graphic UI per area section Dimming control and manual control per individual unit/group/section of area

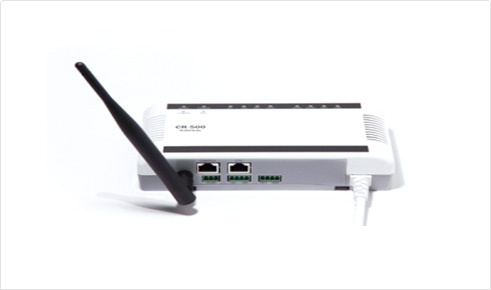

02_Wireless Gateway(GL-100Z)

Integrated management of remote control of LED lighting, scheduling and I/O integrated control.

Function	System integrated equipment, Remote Control, Scheduling
OS	Embedded Linux kernel, RISC Processor 400Mhz
Communication	Tcp/ip, RS-485,2.4Ghz Zigbee
Power / Operating Temperature	220VAC, 50~60Hz, -20℃~50℃
DI/DO	2Port Dry Contact
Size	182(W) x 92(D) x 45(H) mm
Installation Location	Inside of exposed cabinet. Underground parking lot

03_Wired Gateway(ILON smartserver)

Integrated management of remote control of LED lighting, scheduling and I/O integrated control.

Function	Controls LED controller (Up to 10 units), Send DATA
OS	MIPS32 264Mhz, ucLimmux
Communication	Tcp/ip, RS-485, FTT
Power / Operating	220VAC, 50~60Hz, -20℃~50℃
DI/DO	2Port Dry Contact
Size	138(W) x 66(D) x 89(H) mm
Installation Location	Inside of cabinet in EPS/TPS room

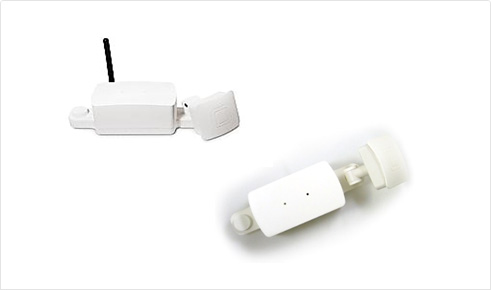

04_Smart Sensor(SM-101DZ,F)

Sending detected signal of automobile and pedestrian to Smart Gateway

Function	Detects Pedestrian/Automobile, Send data to G/W
OS	Microwave Dopler (5.9~13.09Ghz)
Communication	15m~25m ahead, 1m back
ower / Operating Temperature	220VAC, 50~60Hz, -20℃~50℃
DI/DO	Lonworks FT / Zigbee 2.4Ghz / Cordinator
Size	174(W) x 60(D) x 58(H) mm
Installation Location	Bottom of raceway

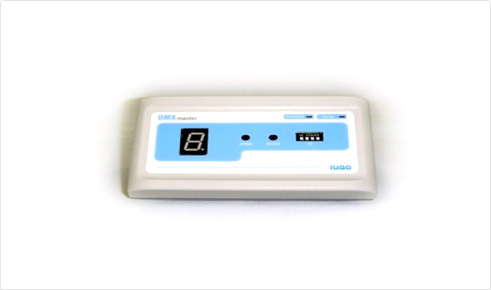

05_LED Controller(DM-F200M)

It’s for smart type wired control system. Sending status of LED to Smart Gateway to control lighting manually and automatically.

Function	Controls 100 units of LED lamp
OS	RS 485 to DMX
Communication	15m~25m ahead, 1m back
Power / Operating Temperature	220VAC, 50~60Hz, -20℃~50℃
DI/DO	9 steps dimming control button, LED Display
Size	130(W) x 50(D) x 70(H) mm
Installation Location	Stand alone in EPS room

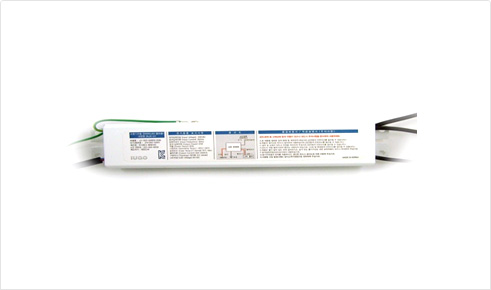

06_Communication Type Stabilizer(LC-022/040)

Communication/Dimming Stabilizer only for LED with integrated power supply and DMX communication part (Different depending on manufacturers of lamp)

Function	Private convertor with dimming and communication function
OS	Constant current
Communication	Bidirectional DMX / Zigbee 2.4Ghz
Power / Operating Temperature	220VAC, 50~60Hz, -20℃~50℃
DI/DO	220VAC, 82mA
Size	230(W) x 35(D) x 44(H) mm
Installation Location	Install inside of lighting fixture / Communication module is exposed to outside when using wireless communication

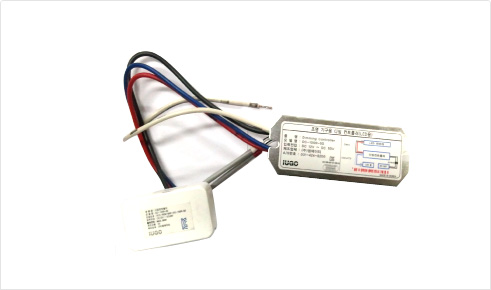

07_Dimming Controller(DC-100R-50)

Remote control dimming and On/Off of LED module directly with PWM

Function	Private convertor with dimming and communication function
OS	Constant current
Communication	Zigbee 2.4Ghz
Power / Operating Temperature	DC12V~50V, 50~60Hz, -20℃~50℃
Size
Installation Location	Install inside of lighting fixture / Communication module is exposed to outside when using wireless communication
