Luxmatic Street

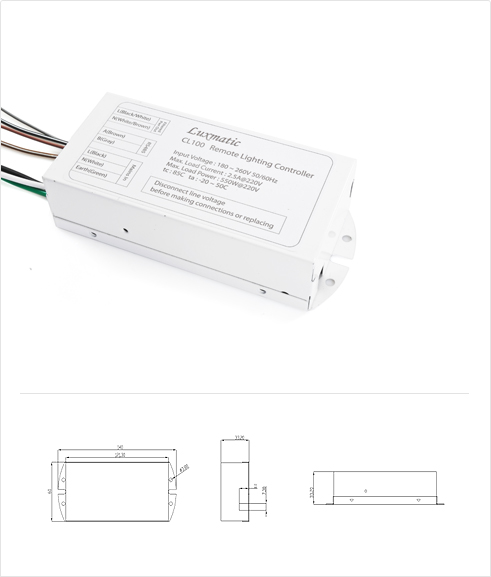

01_Lighting Controller(CL-100)

Smart lighting controller that adjusts intensity of illumination by controlling high power LED converter or ballast of high pressure discharged lamp and monitors its status.

Input Power	85~265V, 46~64Hz
Maximum Current	Up to 2.5A
Cutoff Function	No/td>
Intensity Control Range	0~100%
Communication	LonWorks PLC based on the ISO/IEC 14908-3
Control Signals	0~10V(ESTA E1.3), PWM(IEC60929)
Measured Items	Instantaneous/Accumulative Power consumption, Voltage/Current, Power factor
Measurement Accuracy	1.00%
Alarm	Voltage, Power, Equipment Failure, Current Loss & Over current
Operating Temperature	-40°C ~ +70°C
Protection Standard	IP66
Certifications	KC
Size	140(W) x 60(D) x 33.5(H) mm

• Save power consumption up to 80% (with 20% dimming operation)
• Suitable for roads, tunnels, parking lots and etc. with power line communication which doesn’t need extra wiring
• Control various type of the lamp driving devices regardless of luminaries
• Supports PLC International standard ISO/IEC 14908-3

02_Lighting Controller(CL-200)

Smart lighting controller that adjusts luminance by control high power LED converter or ballast of high pressure discharge lamp and monitors its status.

Input Power	85~265V, 46~64Hz
Maximum Current	Up to 5A
Cutoff Function	Yes
Intensity Control Range	0~100%
Communication	LonWorks PLC based on the ISO/IEC 14908-3
Control Signals	0~10V(ESTA E1.3), PWM(IEC60929)
Measured Items	Instantaneous/Accumulative Power consumption, Voltage/Current, Power factor
Measurement Accuracy	1.00%
Alarm	Voltage, Power, Equipment Failure, Current Loss & Over current
Operating Temperature	-40°C ~ +70°C
Protection Standard	IP66
Certifications	KC, CE
Size	170(W) x 75(D) x 40(H) mm

• Save power consumption up to 80% (with 20% dimming operation)
• Suitable for roads, tunnels, parking lots and etc. with power line communication which doesn’t need extra wiring
• Control various type of the lamp driving devices regardless of luminaries
• Supports PLC International standard ISO/IEC 14908-3

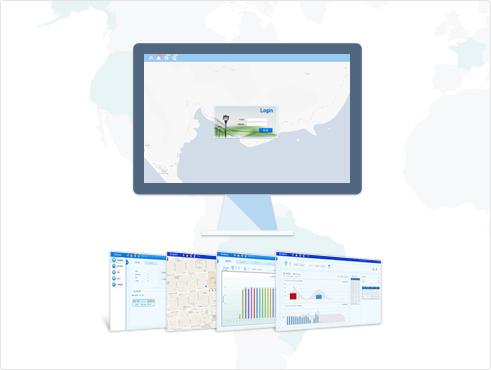

03_Software(Luxmatic Street)

Easy and convenient access, control and maintenance with optimized network for the street lighting.

Processor	Intel Dual core, 2.2 GHz
RAM/HDD	8 GB / 250 GB
OS	Windows Server 2008 R2
DBMS	MS SQL Server 2008 R2 Express
Web Server	Tomcat 6.0
Ethernet Port	10/100BaseT, auto-selecting, auto polarity
Web Browser	Internet Explorer 8.0 Chrome/Firefox/Safari
Monitor	19 inch monitor 1920 x 1080(Full HD)

• Web based control and monitoring function
• User friendly Graphic Interface
• Enables to switch operation mode and control lamp easily by 'One Click'

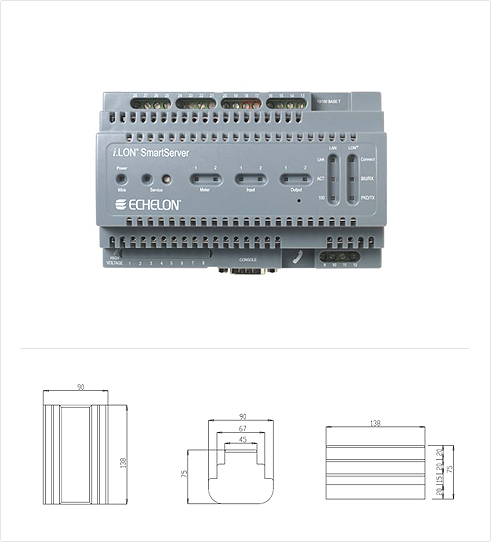

04_Gateway(ILON smartserver)

It’s installed in distribution cabinet, manages remote lighting controller and connects to the internet.

Processor	32bit Embedded Processor
Memory	64MB flash memory; 128MB RAM
PLC	LonWorks PLC based on the ISO/IEC 14908-3
Input Power	100 - 240VAC (-6%/+10%), 50/60Hz
Ethernet	10/100BaseT, auto-selecting, auto polarity
Digital Input	1 isolated RS-485 port; 1 EIA-232 port
Serial Communication	2 optically isolated dry contact inputs, 30V AC/DC.
Relay Output	2 SPST relays rated at 240VAC @ 10A or 24VDC @ 10A
Operating Temperature	-40 to +60ºC
Operating Humidity	10 to 90% RH @ 60ºC
Certifications	KC, CE, UL
Certifications	138(W) x 66(D) x 89(H) mm

• Supports PLC International Standard ISO/IEC 14908-3
• Provides built in web based display for system setting
• Remote program updates
• Outstanding communication reliability with signal repeating technology

05_I/O Module(I/O Link)

I/O Link is a controller based on PLC that provides analog input and digital input/output port.

Processor	Neuron 3150 Chip, 10MHz
PLC	LonWorks PLC based on the ISO/IEC 14908-3
Input Power	85V - 240VAC (-6%/+10%), 50/60Hz
Digital Input	4 optically isolated dry contact inputs, 30V AC/DC.
Digital Output	4 SPST relays rated at 240VAC @ 5A or 24VDC @ 5A
Analog Input	4 Analog Input (0~10V or 4~20mA)
Operating Temperature	-20 to +60ºC
Operating Humidity	10 to 90% RH @ 60ºC
Certifications	KC, CE
Size	160(W) x 60(D) x 90(H) mm

• Supports PLC communication standard ISO/IEC 14908-3.
• 4 ports each of Digital Input / Output.
• 4 ports of 0~10V or 4~20mA of Analog Input.
• Provides various type of sensor interworks.
